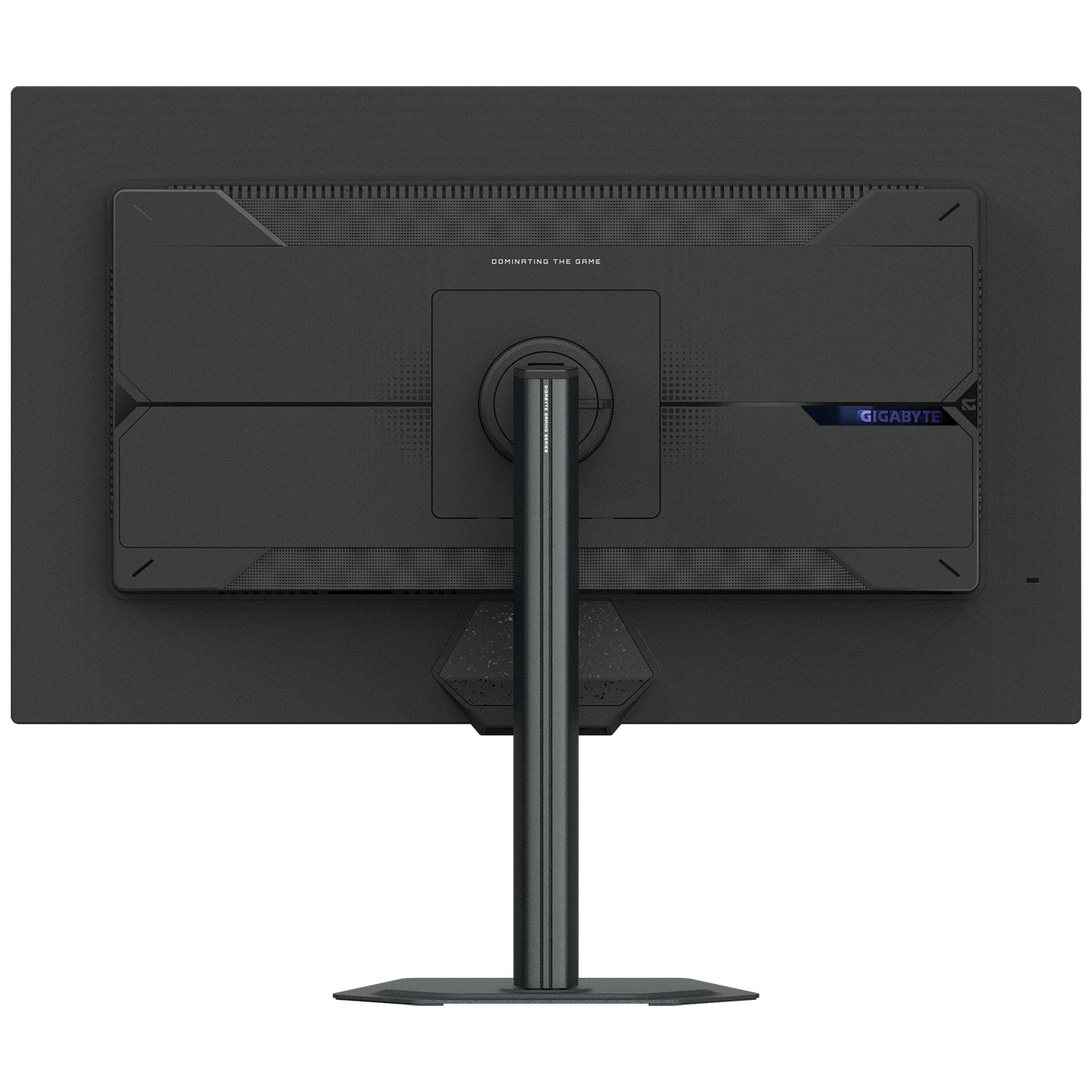

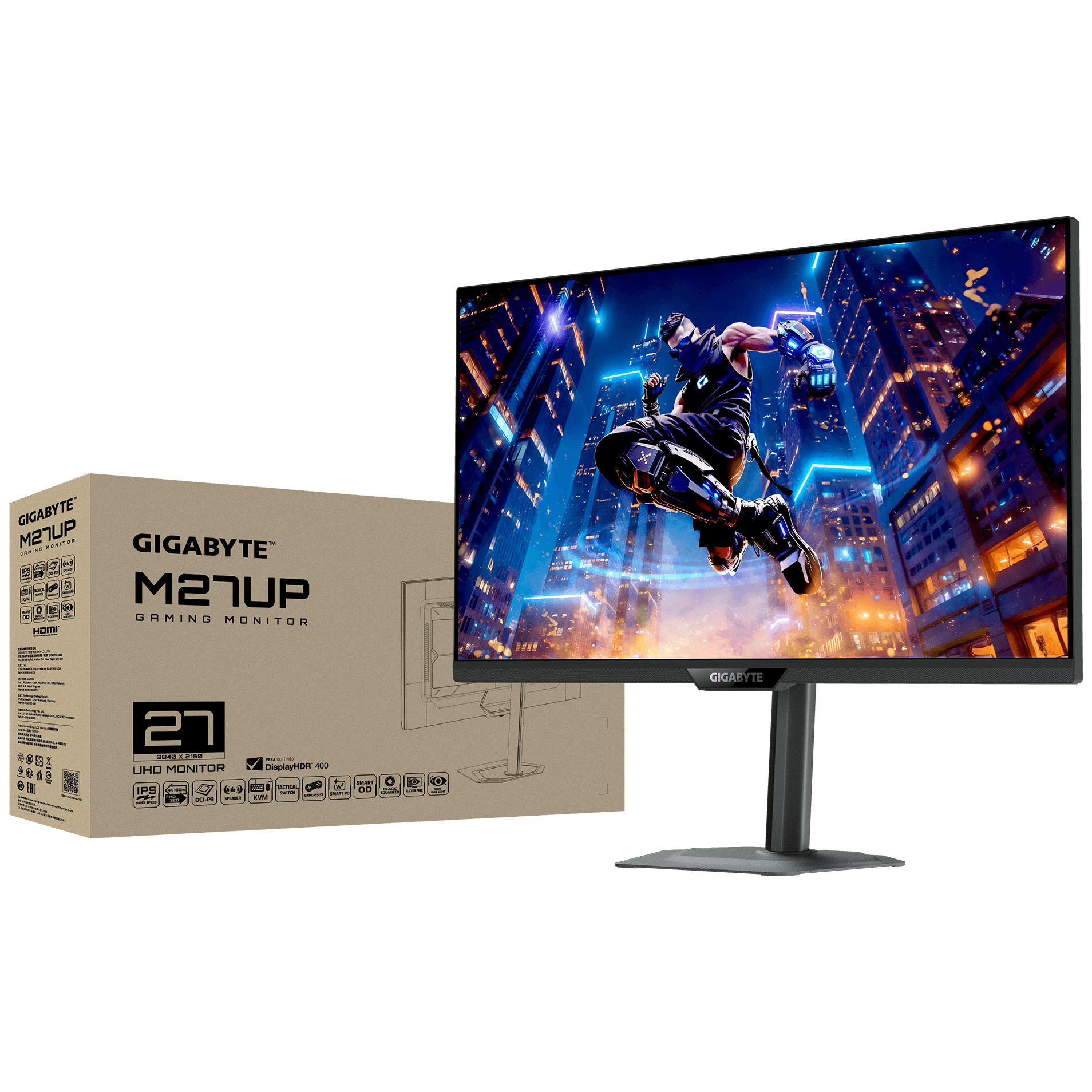

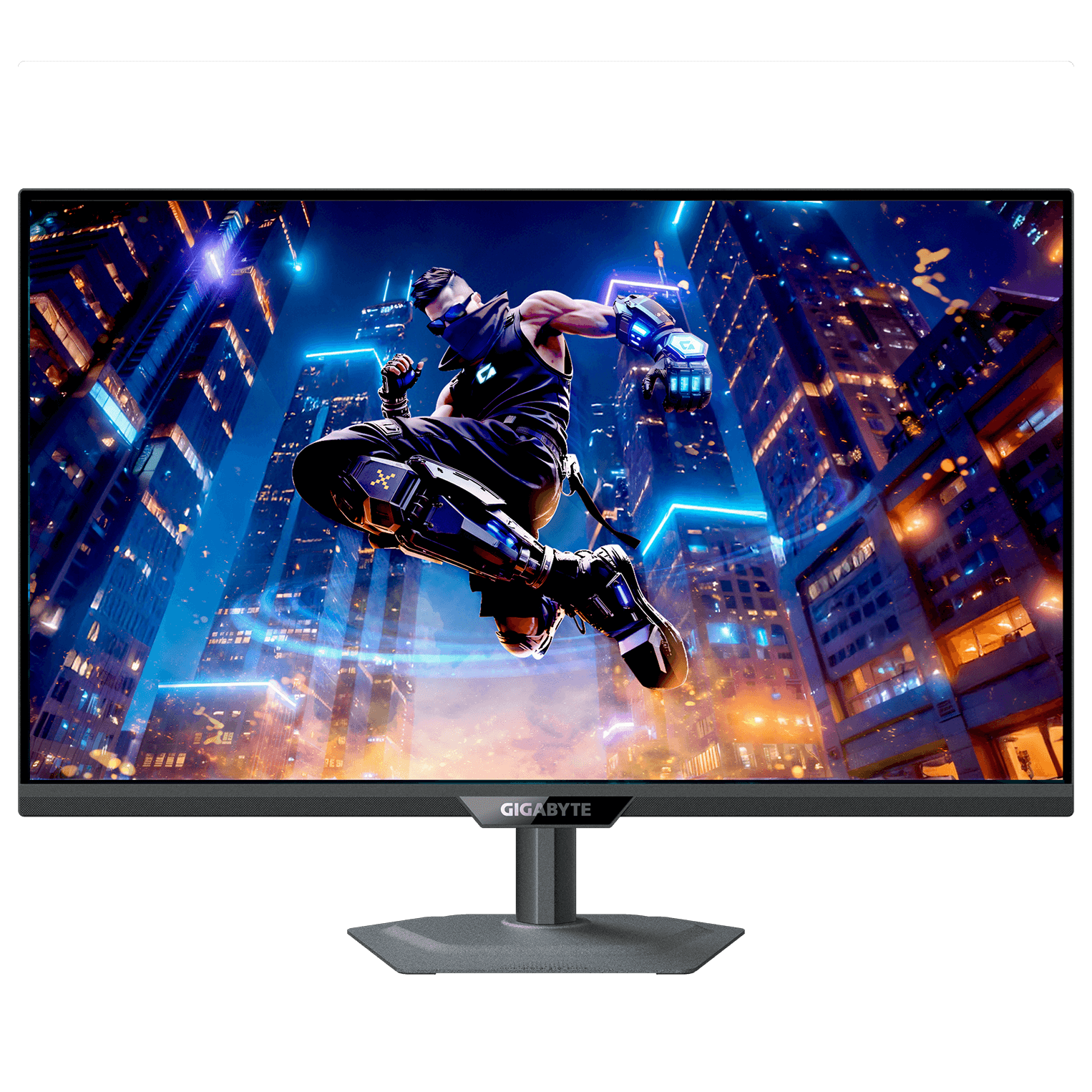

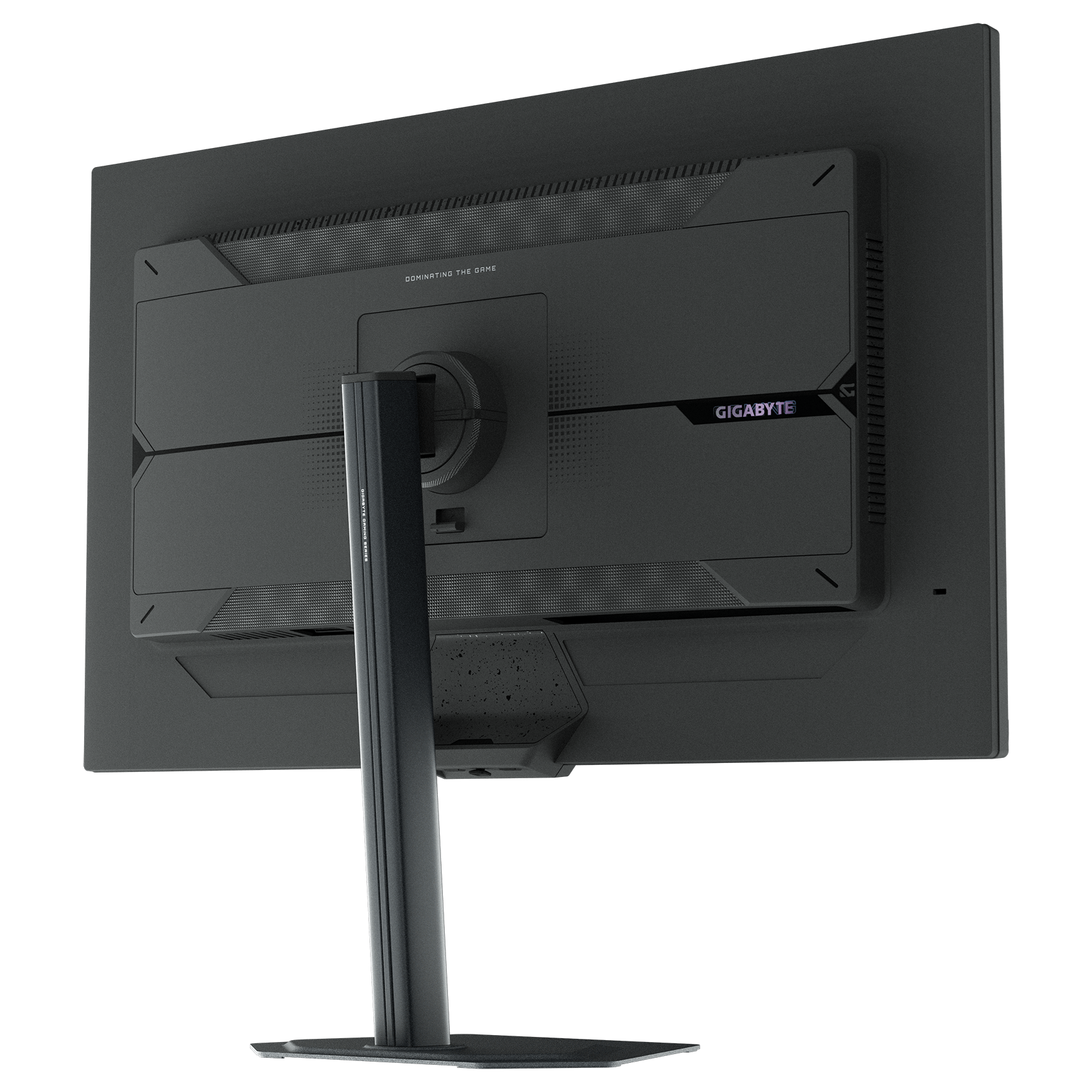

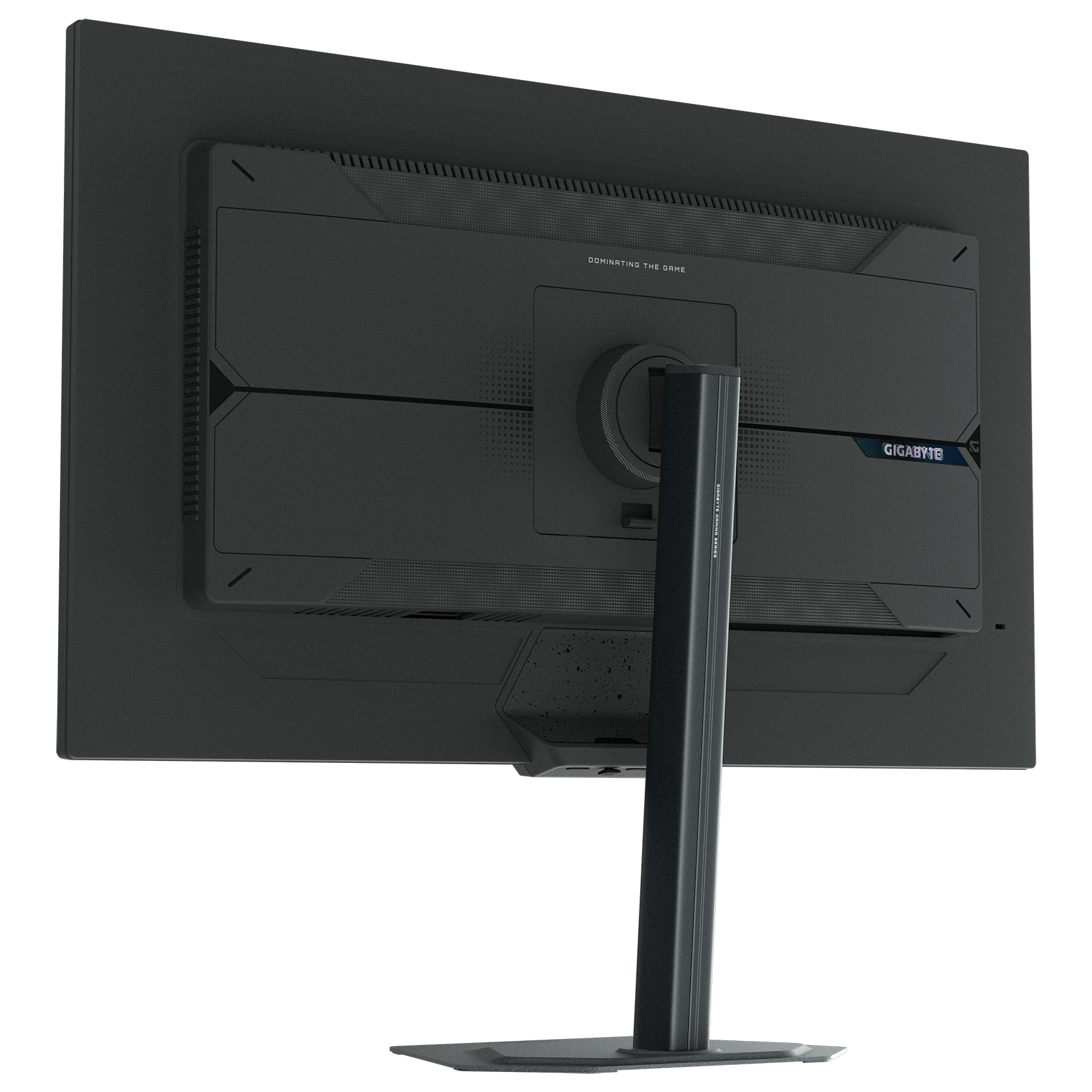

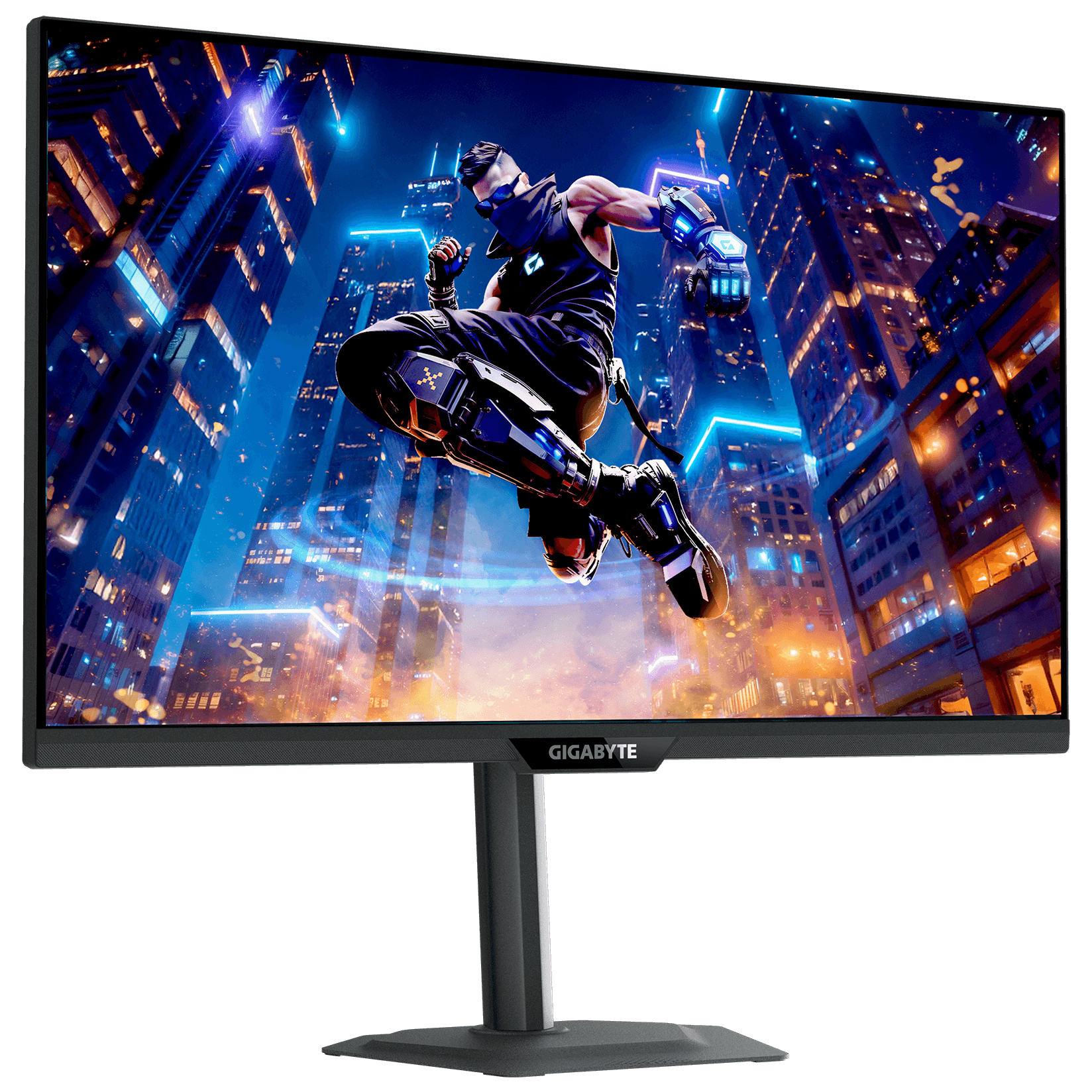

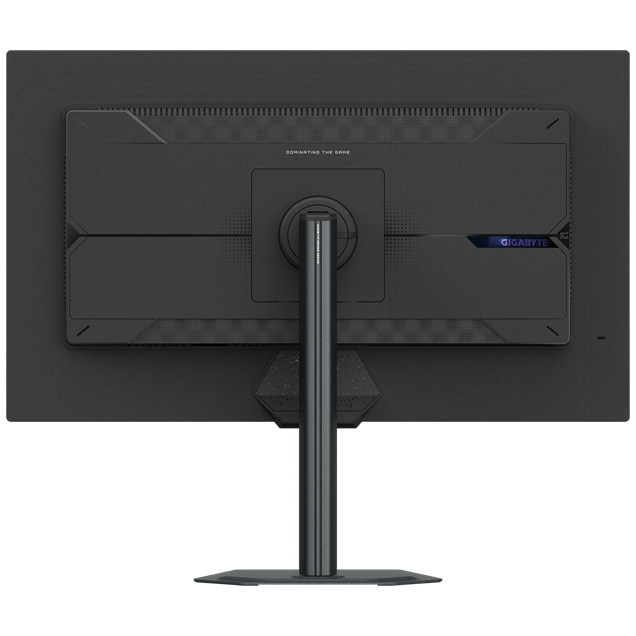

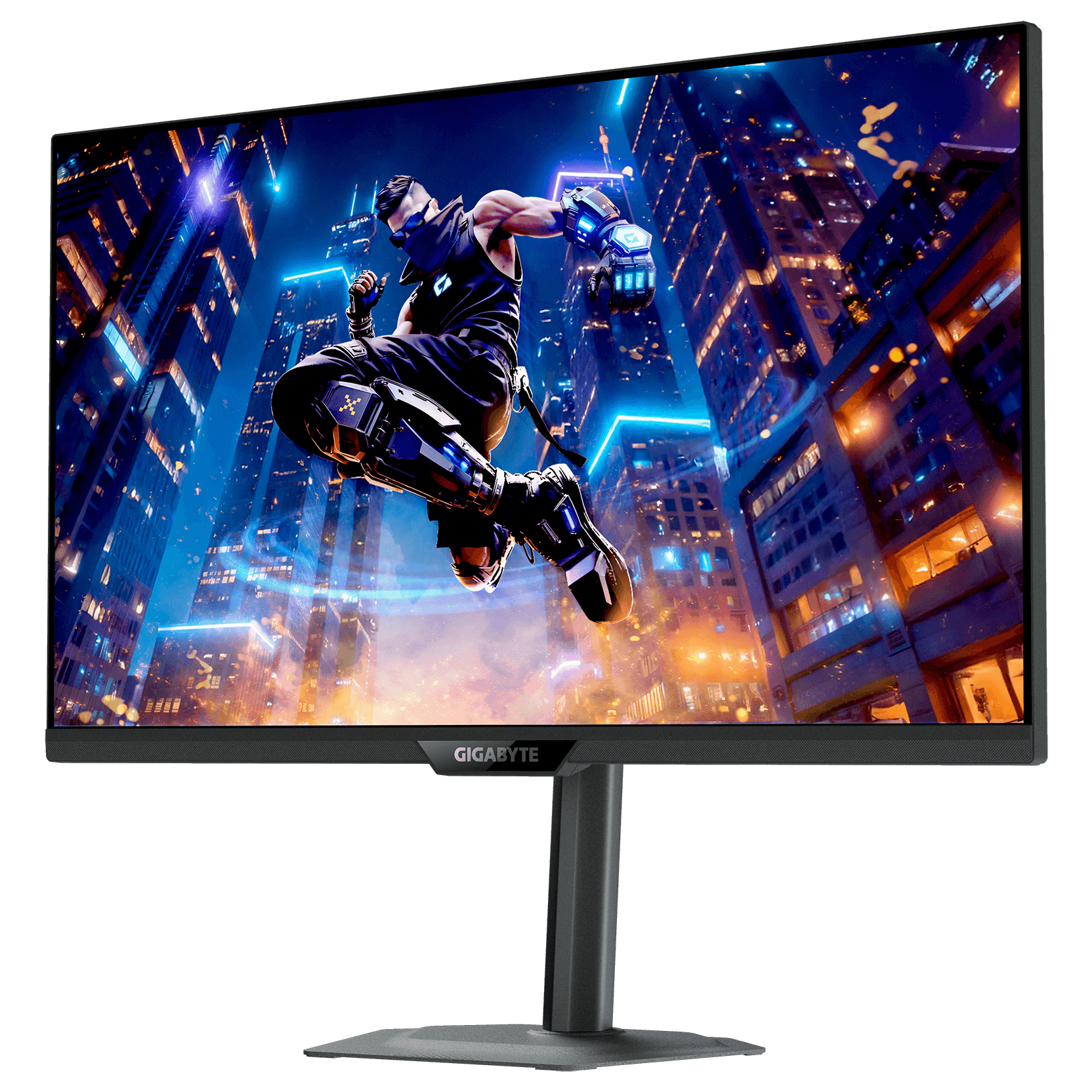

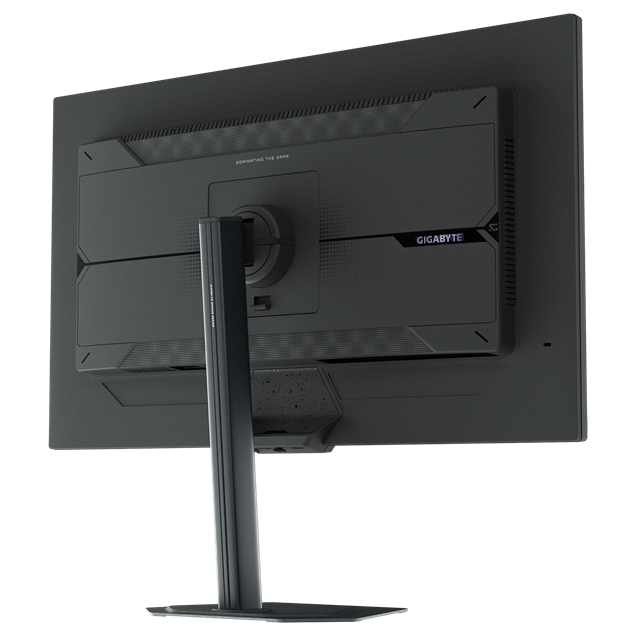

Gigabyte M27UP 27" 4K 160Hz / FHD 320Hz Dual-Mode Gaming Monitor - IPS, 1ms, HDR, FreeSync, USB-C

Display

• Screen Size: 27 inches
• Viewable screen size: 27 inches
• Display Area: 596.7 x 335.7 mm
• Screen Width: 596.7 mm
• Screen Height: 335.7 mm
• Screen technology: SuperSpeed IPS (In-Plane Switching)

Physical

• Form Factor: Flat

Display

• Screen Technology: LED-backlit LCD
• Screen Construction: Anti-glare / 3H hard coating
• Colours: 16.7 million (8-bit) - 95% DCI-P3 / 125% sRGB
• Pixel Pitch: 0.155 mm
• Brightness: 350 cd/m
• View Angle (Horizontal - Max): 178ø
• View Angle (Vertical - Max): 178ø
• Anti-Glare / Anti-Static: Yes - Anti-glare surface
• Pixel Clock Speed: 594 MHz
• Contrast Ratio: 1000:1 (typical)
• Contrast Ratio - Dynamic: 12M:1
• Resolution (Native): 3840 x 2160 (4K UHD)
• Resolution Type (Native): 4K UHD
• Response time: 1 ms (GtG)
• Response Time: 1 ms
• Video Bandwidth: DisplayPort 1.4 / HDMI 2.1 / USB-C
• Lifetime: 30,000 hours (typical LCD lifespan)
• Swivel: ñ30ø
• Resolution (Maximum): 3840 x 2160
• Resolution Type (Maximum): 4K UHD
• Pixels Per Inch (PPI): 163 PPI
• Backlight: LED
• Supported Resolutions: 3840x2160 @160Hz / 1920x1080 @320Hz
• Vertical Frequ: 48Hz - 160Hz (4K mode), up to 320Hz (FHD mode)
• Colour Gamut: 95% DCI-P3 / 125% sRGB
• HD Support: 4K Ultra HD
• Aspect Ratio: 16:9
• 3D Glasses Included: No
• Pivot: ñ90ø
• 3D Display: No
• 3D Display Type: Not supported
• Horizontal Frequency - Low (Digital): 30 kHz
• Horizontal Frequency - High (Digital): 255 kHz
• Vertical Frequency - Low (Digital): 48 Hz
• Vertical Frequency - High (Digital): 160 Hz (4K) / 320 Hz (FHD)
• Vertical Frequency - Low: 48 Hz
• Vertical Frequency - High: 160 Hz (4K) / 320 Hz (FHD)
• Horizontal Frequency: 30 - 255 kHz
• Vertical Frequency: 48 - 160 Hz (4K) / up to 320 Hz (FHD)

Interfaces/Ports

• Microphone In Port: No
• Audio Line Out Ports: Yes - 3.5 mm headphone jack

Physical

• Display Type: LED-backlit LCD

Mount

• Wall Mountable: Yes
• Wall Mount: 100 x 100 mm VESA
• Tilt (Forward/Backward): -5ø to +20ø
• Tilt Range: 25ø total
• Swivel (Left/Right): ñ30ø
• Swivel Range: 60ø total
• Height Adjustable: Yes
• Maximum Height: 130 mm
• Pivot (Rotation): ñ90ø
• Pivot Range: 180ø total
• Side Bezel Width: Approx. 2 mm (top/sides), 18 mm (bottom)

Resolution

• 1920 x 1080 Graphic Mode: Supported (Full HD)
• 2560 x 1440 Graphic Mode: Supported (QHD)

Camera

• Webcam: No

Input

• Input Impedance: 100 Ohms (typical video input impedance)
• User Controls: Power, Input Select, Volume, Brightness, OSD Menu, Game Mode

Remote

• Motion Sensing Technology: None
• Wireless Type: Not supported
• Control Buttons: 5-way joystick and OSD control button
• Button Functions: Power, Menu, Navigation, Quick Switch, Game Mode
• Remote Control: No

Media Adaptor

• Number of Card Slots: None

Warranty

• Warranty: 3 years manufacturer warranty

Sound

• Audio Capabilities: Built-in 2 x 5W speakers, Audio Out (3.5 mm jack)
• Speakers: Yes - 2 x 5W stereo speakers
• Audio Features: Stereo sound, volume control via OSD

Interfaces/Ports

• Audio Line Out Ports: 1 x 3.5 mm headphone jack
• VGA In: No
• SCART Ports: No
• Audio/Visual Port: HDMI 2.1 with audio support
• BNC Port: No
• Digital In: 2 x HDMI 2.1, 1 x DisplayPort 1.4, 1 x USB-C (DP Alt Mode)
• Synch Input: Digital (via DisplayPort and HDMI)
• S-Video in: No
• Video Composite In: No
• USB Ports: 1 x USB-C, 2 x USB-A 3.2, 1 x USB-B upstream
• Microphone In Port: No
• Audio Line In Ports: No
• Headphone Ports: Yes - 3.5 mm headphone jack
• Serial Ports: No
• AC Power: 100 - 240V AC, 50/60Hz
• DC Power: External power supply (DC 19V, 6.32A)
• Video Component In: No
• Video Component Out: No
• Video Composite Out: No
• HDMI Ports: 2 x HDMI 2.1
• DisplayPort In: 1 x DisplayPort 1.4
• Firewire Ports: No
• Digital Audio Optical Out: No
• Digital Out: Via HDMI / DisplayPort
• RJ-45 Ports: No
• Thunderbolt Port(s): No
• Infrared Port: No
• DisplayPort Out: No

Network (Wireless)

• Bluetooth: No
• Wireless System: No

System

• User Programmable Modes: Yes - User, Standard, Movie, FPS, RTS/RPG modes
• Factory Presets: Yes - sRGB, DCI-P3, HDR, and Gaming presets
• Language Selection: Multi-language OSD (English, French, German, Spanish, etc.)
• Plug and Play: Yes
• Monitor Management: OSD Sidekick software, Auto brightness, KVM switch
• Software Included: Gigabyte OSD Sidekick

System Requirements

• Operating Systems Supported: Windows, macOS, and compatible with gaming consoles
• System Requirements: HDMI 2.1, DisplayPort 1.4, or USB-C compatible device

Electrical

• Electrical Power Consumption: 32W (typical), 60W (max)
• Electrical Power Consumption Standby: <0.5W
• Electrical Power Consumption Saving: <0.5W (Eco Mode)

Compliance

• Certifications: CE, FCC, BSMI, KC, VCCI, RCM, Energy Star, EAC

Electrical

• Voltage: 100 - 240V AC
• Electrical Frequency: 50 / 60 Hz
• Power Adaptor Type: External AC to DC adaptor
• Power Adaptor Output Voltage: 19V DC, 6.32A
• Power Management Features: Energy-saving mode, auto sleep, and Eco power-off
• Power Supply: External AC adapter (19V DC, 6.32A)
• Energy Rating: Energy Star Certified

Environmental

• Operating Temperature: 0&#248;C - 40&#248;C
• Operating Humidity: 10% - 90% (non-condensing)

Physical

• Form Factor: Flat panel
• Case Colour: Black
• Pack Quantity: 1
• Security Locking Mechanics: Kensington lock slot
• In The Box: Monitor, stand, power adapter, HDMI cable, DisplayPort cable, USB cable, quick start guide
• Width: 615 mm
• Depth: 235 mm (with stand)
• Height: 533 mm (with stand)
• Weight: 7.1 kg (with stand)
• Country of Origin: China

Shipping

• Shipping Carton Quantity: 1
• Shipping Carton Product Quantity: 1
• SC Width: 700 mm
• SC Depth: 190 mm
• SC Height: 470 mm
• SC Weight: 9.2 kg (approximate, including packaging)
• Trade Carton: Standard retail packaging
• Trade Carton Product Quantity: 1
• TC Width: 700 mm
• TC Depth: 190 mm
• TC Height: 470 mm
• TC Weight: 9.2 kg
• Shipping Pallet Quantity: Varies (typically 20 units per pallet)
• Pallet Product Quantity: 20 units
• SP Width: 1200 mm
• SP Depth: 190 mm
• SP Height: 470 mm
• SP Weight: 9.2 kg (with packaging)

Identifiers

• Stock Code: MON9706
• Mfg Code: M27UP-EK
